How a Secret Japanese Satellite Deal Just Supercharged Ukraine’s War Intel
Japan had never before shared classified geospatial data with another country.
On April 21, 2025, Japan did something it had never done before: it handed over its most advanced form of space-based surveillance to a foreign military.
And not just any military… Ukraine’s GUR, the country’s military intelligence agency that has been hunting Russian logistics hubs, field commanders, and infrastructure with near-religious intensity since the first tank rolled across the border in 2022.
The asset in question?
Synthetic aperture radar imagery from Japan’s rising star in commercial aerospace, the Institute for Q-shu Pioneers of Space, or iQPS. It’s radar, but on steroids. And Ukraine is about to use it in the most brutal real-world testbed on the planet.
Japan’s First Step into the Intelligence Arena
For decades, Japan has been a space power with strict limits. Its postwar constitution discourages militarization and restricts the export of defense-related technology. But Russia’s war on Ukraine is changing old assumptions across Asia, and Tokyo is no exception.
After a brief but disruptive pause in US satellite intel sharing with Ukraine in early 2025, Ukrainian officials began quietly asking around. By February, a closed-door discussion with Japan turned into a working agreement. By April, it was official: Japan would begin feeding radar satellite imagery directly to Ukraine’s GUR.
This wasn’t just symbolic. Japan had never before shared classified geospatial data with another country. The move speaks volumes, not only about the trust between Kyiv and Tokyo, but also about Japan’s willingness to play a more active role in global security affairs.
And if you’re wondering whether Japan just handed Ukraine some old black-and-white snapshots, think again.
The Radar That Sees in the Dark
Forget what you think you know about satellite imagery. When people hear “spy satellite,” they picture high-powered optical cameras snapping zoomed-in photos from orbit, great for spotting tank columns in daylight, useless when clouds roll in or night falls.
That’s where synthetic aperture radar, or SAR, turns the tables. Unlike traditional satellites, SAR doesn’t wait for perfect conditions. It makes its own.
SAR satellites don’t passively collect light. They actively transmit pulses of microwave energy toward the Earth’s surface. These pulses penetrate clouds, rain, smoke, and darkness. When the energy bounces back, it carries a distinct signature echo that reveals the shape, movement, and texture of what it hit.
Process those returns through a supercomputer on the ground, and you get an image. Not just any image, but one detailed enough to detect soil disturbance from a buried IED, tire tracks left an hour ago, or slight shifts in terrain that indicate heavy machinery is nearby.
You don’t need sunlight. You don’t need clear skies. You don’t need a second chance. SAR is always on.
This is the incredible advantage now in Ukrainian hands.
In military terms, SAR is a combat amplifier. It is the weaponized fusion of physics and mathematics, using Doppler effects and motion compensation to simulate the resolution of a much larger radar dish.
Actually, here’s a great explainer from one of my favorite YouTubers.
The name, synthetic aperture, refers to this clever trick. A small satellite flying fast in low Earth orbit can, through post-processing, produce imagery with the precision of a much larger, ground-based radar array. The result is sub-meter resolution from a microwave system the size of a dorm refrigerator.
But here’s what makes SAR a battlefield terror: it works regardless of Russian countermeasures.
The Russians can deploy smoke screens. SAR sees through them. They can use camouflage netting. SAR picks up unnatural textures and reflective patterns. They can bury tanks in tree lines or idle in fog-heavy terrain. SAR watches them anyway.
Unlike conventional radar, which can be jammed or deceived by chaff, SAR’s moving platform and frequency agility make it far harder to spoof.
Even better, SAR images can be compared over time, a technique known as coherent change detection. You take a SAR image of a region. Then take another hours or days later. Feed both into a comparison algorithm, and you get a forensic overlay of what’s changed: disturbed earth, new tire ruts, destroyed infrastructure. It’s like time-lapse surveillance for battlefield planners.
In Ukraine’s case, that means pinpointing Russian artillery movements at night. It means tracking logistic convoys in winter storms. It means watching an enemy who thinks they’re hidden.
And perhaps most valuable of all, it gives Ukraine strategic awareness without needing constant drone flights over contested territory. It reduces exposure. It increases reaction speed. It strengthens every other sensor in Ukraine’s growing digital kill chain.
In the information war, the side that sees first, hits first.
With iQPS satellites scanning through snow and smoke while Russia relies on yesterday’s doctrine and rusting Soviet optics, it’s no contest.
SAR is the future. And it’s no longer the exclusive toy of superpowers.
It’s now a weapon in Ukraine’s hands.
A Tiny Satellite with a Giant Punch

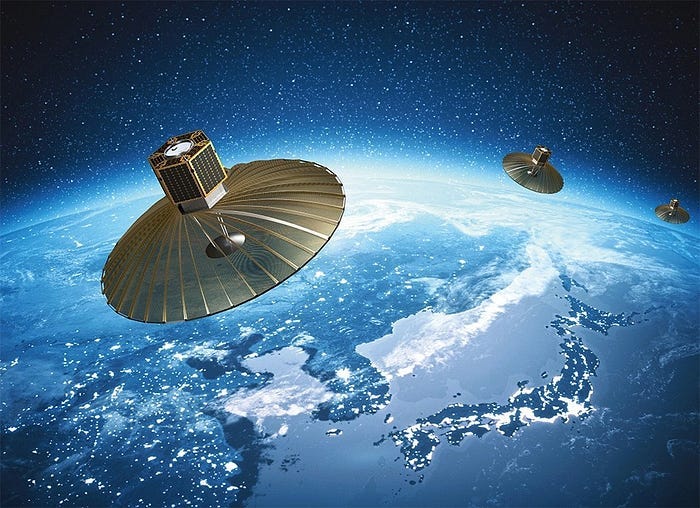

The SAR imagery now flowing into Ukraine isn’t coming from a Cold War-era monolith. It’s coming from a Japanese-built satellite the size of a dorm fridge.
iQPS’s QPS-SAR satellites weigh just 100 kilograms, roughly the weight of a medium-sized lawn mower. But despite their size, they punch far above their weight class. Each satellite can produce 46-centimeter resolution images, clear enough to identify vehicles, tents, or weapons emplacements.
That’s made possible by a technical marvel: a 3.6-meter parabolic radar antenna made of mesh that folds up to 80 centimeters for launch and then unfurls in orbit like a blooming flower.
The deployable dish is supported by a spring-loaded frame and stabilized by precision-engineered ribs to ensure maximum surface smoothness. Translation: clean signals, sharper images, and no distortion.
The radar itself operates in the X-band, a frequency ideal for both penetration and detail. QPS-SAR satellites switch between two main imaging modes: Stripmap Mode, for wide area surveillance, and Spotlight Mode, which zooms in on high-value targets with intense resolution.
iQPS plans to field 24 of these satellites by 2027. With just five in orbit as of April 2025, they can already revisit any point on Earth multiple times per day. By 2027, they aim to offer global updates every 10 minutes.
For comparison, the US National Reconnaissance Office pays billions to do the same thing with larger, heavier, and vastly more expensive hardware. iQPS says their entire constellation will cost about one percent of what legacy SAR systems cost.
Ukraine’s military doesn’t just need satellite imagery, it needs persistent, weatherproof, high-resolution imagery that can cut through the Russian fog of war. And that’s what iQPS is delivering.
In 2024, GUR officials revealed that nearly two-fifths of the targeting data used for high-profile strikes on Russian logistics hubs came from Finland’s ICEYE SAR constellation. That data enabled Ukraine to hit fuel depots, command posts, and even moving rail convoys, all with satellite guidance.
Now, add Japan’s iQPS into the mix.
With more SAR feeds coming in, Ukraine can overlap images, confirm patterns, track enemy redeployments, and prepare strikes on hardened targets. SAR can also detect when roads are freshly disturbed, which may signal the burying of mines or new trench construction.
It can detect moisture from hidden vehicles or supplies. It is, in short, an all-weather eye that blinks far less often than a traditional satellite.
For Ukrainian strike planners and drone operators, that is a battlefield superpower.
Wait Wes! Doesn’t Russia have SAR Satellites?
Well, yes, but they suck. The Kondor satellite family is Russia’s primary SAR-capable platform. The original Kondor-E was exported (notably to South Africa), while Kondor-N and Kondor-FKA are domestic military and civilian versions.
Its current SAR platforms lag behind NATO counterparts in revisit rate, imaging frequency, and the seamless integration of data into modern command-and-control systems.
While Russian SAR satellites may still provide adequate imagery for broad reconnaissance, infrastructure analysis, or detecting large objects, they fall short when it comes to delivering the kind of tactical, real-time battlefield intelligence that Ukraine now receives through its partnerships with Japan and Finland.
Japan’s New Role in a Changing World
To understand how big this is for Japan, look past the radar and into history.
Japan’s space program has long prioritized civilian missions.
Disaster response.
Agricultural analysis.
Earthquake prediction.
It has never before crossed the line into real-time battlefield intelligence sharing.
But by stepping into this role with Ukraine, Japan is taking a small but meaningful step toward reimagining its postwar pacifism. It’s not deploying troops. It’s not sending weapons. But it is enabling a nation under siege to better defend itself.
This decision also aligns with Japan’s increased participation in the Quad alliance, alongside the US, India, and Australia, focused on countering rising threats in the Indo-Pacific. And with China aggressively building out its own SAR constellation, Japan’s choice to help Ukraine also sends a message to Beijing: Japan is watching, and it is not watching alone.
Stealth bombers may slip past radar. Tanks may hide under camouflage. But SAR sees what others cannot. Miniaturization and commercial innovation have changed the game.
Now, startups like ICEYE and iQPS can launch entire constellations for a fraction of the cost, with better revisit times and lower latency. This democratizes access to real-time military intelligence in a way the Pentagon never imagined.
For Ukraine, this is survival. For Japan, it is the beginning of a new foreign policy identity. For the world? It may signal that the old intelligence order, dominated by national programs, is being disrupted by agile, private-sector visionaries.
As Japan’s iQPS constellation continues to grow, and as Ukraine integrates that data into its daily warfighting, we are witnessing the emergence of a new era, one where smart satellites, not just smart bombs, shape the outcome of wars.
Слава Україні! Crimea is Ukraine.
