Meet Ukraine's Newest FrankenSAM: The Dragon H73 MAZRK
From Vietnam to Bakhmut: Ukraine Reinvents a Classic SHORAD Killer
One could make an entire career out of trying to identify all of Ukraine’s FrankenSAM variants, especially SHORAD. Once air-to-air missiles were reprogrammed to effectively fire from sea level, it then became an exercise to see how many ground vehicles Ukraine could bolt missiles to.
Ukraine’s newest FrankenSAM? The Dragon H73 MAZRK.
Inspired by the Cold War-era US Army Chaparral system, this mobile air defense platform is built on the bones of an American HMMWV and armed with Soviet-designed R-73 missiles.
Think about it like this: Both Humvees and R-73 missiles are in plentiful supply in Ukraine.
So, let’s (ideally) give every frontline infantry unit the ability to shoot back at low-flying aircraft and drones with speed, agility, and firepower. And once again, the Ukrainians are proving that necessity really is the mother of battlefield invention.
From the Chaparral to the Steppe: Old Doctrine, New Execution

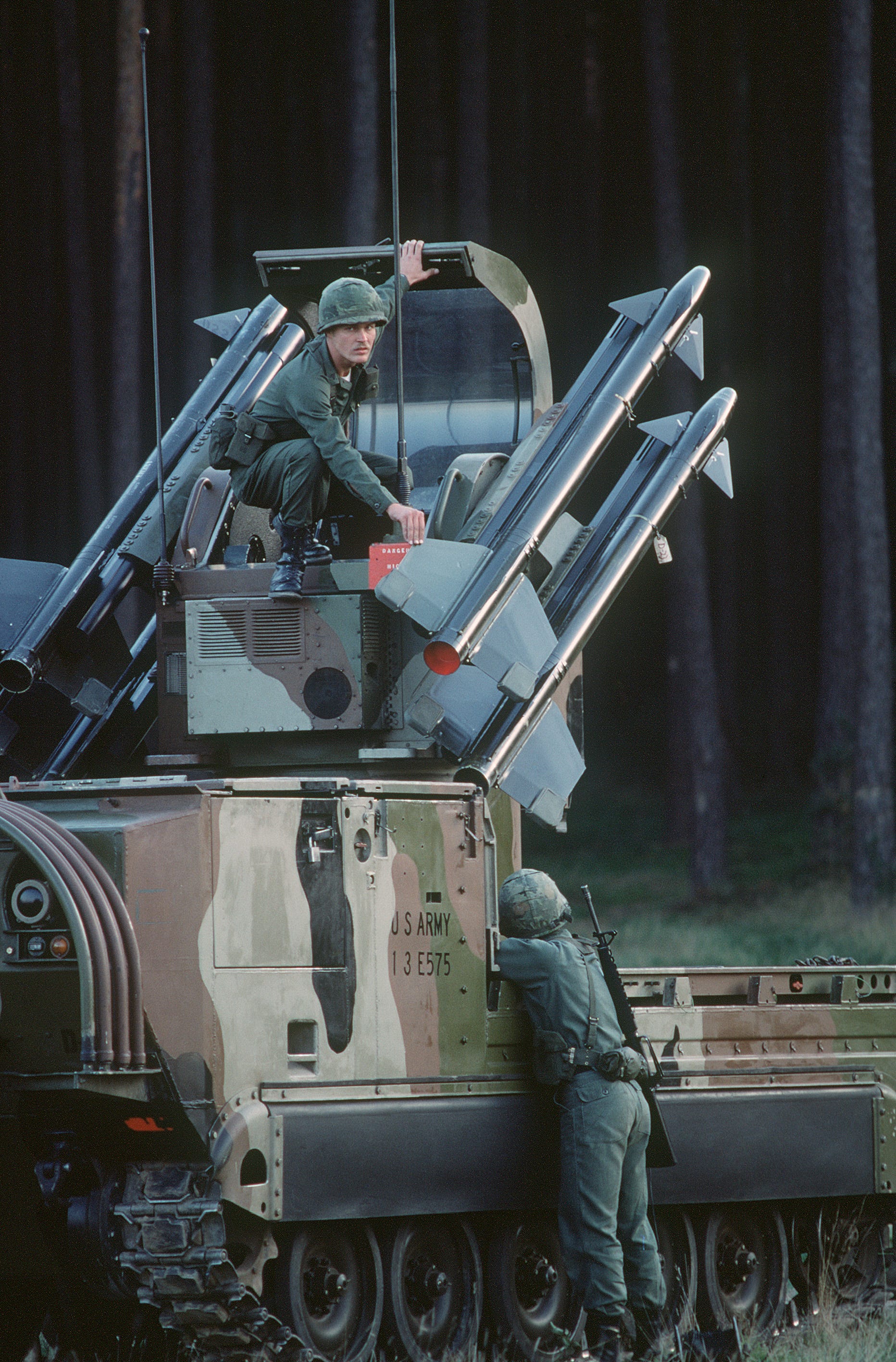

If the Dragon H73 looks familiar, its design echoes the US MIM-72 Chaparral, a mobile SAM platform from the 1960s that used AIM-9 Sidewinders mounted on M113 chassis to provide fast-reacting air defense for advancing mechanized units.
The Chaparral’s strength lay not in sophistication, but in strategic coverage. It was fast, mobile, and simple, a front-line guardian designed to keep enemy aircraft from owning the skies at low altitudes.
Ukraine’s Dragon H73 takes that same philosophy and updates it for a new generation of threats.
Instead of Cold War jets, the Dragon is built to hunt Russian Orlan drones, Shahed kamikazes, Ka-52 helicopters, and even low-flying Su-25 ground attack aircraft, the “A-10 Warthog” of Russia. In terms of structure, the Dragon H73 is mounted on a US-donated HMMWV chassis, likely an M1097A1 or A2.
This is no coincidence. That same Humvee platform serves as the base for the American AN/TWQ-1 Avenger, another short-range air defense system that uses Stinger missiles to protect troops on the move.
The logic here is airtight. You take a proven, rugged, and battlefield-tested vehicle, equip it with hard-hitting missiles, add thermal optics, and plug it into the local radar net. What you get is a lightweight, survivable, and mobile SAM that can drive into contested zones, fire, and displace, all without a dedicated runway or support structure. This is mobile short-range air defense built for the chaos of modern war.
The HMMWV: More Than Just a Truck
The HMMWV, or Humvee, may have been conceived as a utility vehicle, but it has evolved into something far more versatile. For air defense applications, its strengths are its power-to-weight ratio, off-road agility, and modularity. With a diesel engine that soldiers already know how to maintain, plus a high payload capacity, the Humvee can easily accommodate launch rails, optic systems, and a small EW suite.
Unlike heavier platforms like the M113 or MRAPs, a Humvee-based launcher can leap from road to field and back again without throwing a track or blowing a transmission.
The Hummer was never built to withstand improvised explosive devices or roadside bombs, so naturally, during the Global War on Terror, it got a bad reputation and forced the Pentagon to rethink MRAPS.
But it was MADE for war in Europe!
For the Dragon H73, that agility is key. The missile mount is clearly designed for rotation and elevation, giving it the ability to track fast-moving targets across a wide field of fire.
Between the missile rails sits an optical sighting system with thermal imaging capability, allowing for target acquisition at night or through battlefield obscurants like smoke or dust. It is not yet clear whether the system incorporates radar-guided cueing, but sources suggest it may receive targeting data from external radar stations.
This means that even if the H73 itself does not “see” the threat initially, it can be slaved to a broader air defense network to cue it in the right direction.
The R-73: A Soviet Missile, Reborn for the Front Line
The R-73 was never supposed to live this long, let alone evolve into a surface-launched threat fired from the back of a pickup-sized vehicle.
Originally designed to win dogfights during the Cold War, this heat-seeking missile was engineered for one thing: outmaneuvering Western aircraft in the swirling chaos of close-quarters air combat.
And it did that job exceedingly well. Its agility, off-boresight targeting, and blistering acceleration made it one of the most dangerous Soviet short-range air-to-air missiles of its generation. But that was then. Today, Ukraine has pulled the R-73 out of the air-to-air role and given it a second life, this time hunting drones and helicopters from the ground.
What makes the R-73 such an ideal candidate for this transformation? First, it is an infrared-guided weapon, meaning it does not need active radar to track and strike its target. That’s a big deal in modern air defense, where every radar pulse is an invitation to get hit by anti-radiation missiles or geolocated for artillery.
Passive guidance lets the system remain electronically silent, relying only on thermal contrast from the target. It is the heat signature of an engine, not a radar return, that becomes the bullseye. That stealthy engagement profile makes it well-suited for the close-quarters cat-and-mouse game unfolding across Ukrainian skies.
Second, and perhaps more critically, Ukraine has a deep bench of these missiles. Decades of stockpiling during the Soviet era left Ukraine with a vast inventory of R-73s in various states of readiness. While some older missiles may have degraded thermal seekers or aging propellants, many remain perfectly functional, especially when used against low-speed, low-maneuverability targets like loitering drones or utility helicopters.
The integration of these surplus missiles into ground-based launchers is not just tactical innovation, it is logistics warfare at its best. Instead of letting aging air-to-air missiles gather dust in bunkers, Ukraine is repurposing them to shoot down threats that are multiplying by the hour.
There’s also the psychological factor. For Russian pilots operating near the front, the knowledge that even a civilian-looking vehicle with a missile rack might suddenly spike a heat signature and launch a seeker into their engine nozzle is a sobering thought.
The R-73’s long-standing reputation as a “knife-fight missile” carries over to this new role, but with a twist: now the blade is coming from below, right for the nuts.
Finally, the missile’s adaptability lends itself to future enhancements. In theory, the R-73 could be paired with better optics, networked targeting data, or even fused with proximity airburst warheads for drone interception.
Its relatively small form factor means it can be quad-packed, doubled, or rotated quickly, making it more flexible than larger, more expensive alternatives. And because the missile doesn’t need elaborate launch tubes or rails, it can be fielded rapidly on light platforms like the Dragon H73 or potentially even unmanned vehicles in the future.
In short, the R-73 isn’t just surviving the modern battlefield, it’s thriving in it. What started life as a jet-mounted dogfighter has been reimagined as a frontline drone killer, a helicopter hunter, and a key component of Ukraine’s improvised but increasingly lethal short-range air defense strategy.
The irony is rich: a Soviet missile originally designed to counter NATO jets is now protecting Ukraine against Soviet-era helicopters and Iranian drones, with NATO’s tactical blessing.
This is what 21st-century warfare looks like, where yesterday’s weapons get new roles, new launch platforms, and new relevance. And in Ukraine, the R-73 is proving that old weapons, like old soldiers, still have fight left in them when the cause is just and the engineering is clever.
The Need for Mobility: Survive to Fire Another Day
In modern warfare, survivability is no longer just about armor thickness or camouflage netting. It is about mobility, pure, relentless movement.
Speed equals armor.
And nowhere is this more true than in Ukraine’s evolving air defense architecture. The threat matrix is shifting fast.
Russian Lancets, Shaheds, loitering munitions, and electronic warfare assets are relentlessly hunting anything stationary.
That means the only air defense system worth its weight in steel is the one that can shoot, scoot, and vanish before the counterfire arrives. This is where platforms like the Dragon H73 mounted on a Humvee come into their own.
The Humvee may be a Cold War veteran, but its utility endures precisely because of its versatility and speed.
With a relatively small thermal and radar signature, it can traverse rough terrain, back roads, or even urban rubble with agility that tracked vehicles can only envy. And with Ukraine’s emphasis on decentralized, dispersed defense networks, speed really is armor. A vehicle that can reposition between strikes or hug the shadows of tree lines and buildings becomes inherently harder to target.
My QRF unit (quick reactionary force) used to chase big ass lizards around the Iraqi deserts “fur fun… y’all” Until our commander warned us that there may still be land mines buried from the first Gulf War in our Area of Operations.
Whoops. My point is the Humvee was surprisingly quick, at least it was on the flat, hard desert terrain of Southern Iraq.
The Humvee might not withstand a direct hit, but it was never meant to. The mission is to fire first, relocate fast, and stay in the fight longer than the threats chasing it.
This is particularly critical for SHORAD, or short-range air defense. Unlike long-range systems that can afford to sit miles behind the line and rely on radar bubbles the size of counties, SHORAD units are in the thick of it, covering frontline troops, forward logistics nodes, and high-value tactical assets that cannot be moved easily.
That means they need to remain unpredictable. A mobile air defense unit can change sectors daily, masking patterns and avoiding drone reconnaissance. It becomes a shell game for the enemy, with every movement a potential deception.
Mobility also enhances tactical flexibility. A nimble SHORAD team can be redirected within minutes to protect a newly exposed flank, a vulnerable convoy route, or a makeshift headquarters set up after the last one was bombed. The Dragon H73, with its ability to operate independently and without a heavy logistical tail, can respond to shifting threats in real time, not after a planning cycle.
This kind of reactive capability is exactly what Ukraine needs in a battlefield that rewrites the rules every week.
And finally, there is the human factor. A mobile crew is a living crew. Survivability is not just about keeping a system functional; it is about keeping trained, experienced operators alive to fight another day. In a war where every air defense asset is a scarce commodity, the ability to redeploy rather than recover from a smoking crater is mission-critical.
Mobility, then, is not just an advantage. It is the cost of admission. In Ukraine’s air defense game, the winners are the ones who stay one step ahead of the drones, the missiles, and the artillery. And systems like the Dragon H73 are built to run that race, firing back from unexpected places and then disappearing into the terrain, alive, loaded, and ready for the next target.
An Updated Chaparral With Rich Strategic Value
The Dragon H73 MAZRK is more than an improvised weapon. It is a carefully thought-out, locally produced answer to a specific and pressing problem: how to defend Ukrainian forces and infrastructure from the sky using what is available, scalable, and effective.
Its resemblance to the US Chaparral is more than cosmetic. Both systems reflect the same philosophy: put a missile on a mobile platform, give it a brain and an eye, and send it where it is needed most.
In the R-73, Ukraine has found a missile that still has fight left in it. In the Humvee it has a chassis that can survive the grind of frontline warfare. And in the Dragon, it has created a mobile air defense system that can adapt, fire, and keep moving.
As Russia continues to rely on cheap drones and low-level air strikes to terrorize the front and rear alike, Ukraine’s answer is now rolling forward on four wheels, seeking heat signatures through thermal optics, and waiting for its next airborne target.
Call it innovation, call it adaptation, but whatever you call it, it works.
I can’t wait to see the next FrankenSAM Ukraine develops.
