Video: Why This Australian Radar is Changing Canada's Defense Strategy

The radar that bounces off the sky and sees 3,000km into the Arctic

---

Video transcript:

Canada Just Bought the Radar That Sees Over the Curve of the Earth. From Australia.

Canada just signed a A$2.5 billion deal with Australia for a radar system that can see aircraft, ships, and missiles up to 3,000 kilometers away.

Not because it sits on a mountain. Not because it is enormous, although parts of it will stretch for kilometers and contain hundreds of antenna elements.

Because it bounces high-frequency radio waves off the ionosphere and uses the upper atmosphere like a mirror.

The system is based on Australia’s Jindalee Operational Radar Network, known as JORN. It was signed this morning in Canberra. Delivery work begins July 1. And Canada needs it for one very specific reason: the Arctic is enormous, strategically exposed, and increasingly impossible to ignore, and conventional radar has a physics problem that the ionosphere is uniquely positioned to solve.

Let’s get into it.

Hey friends, I’m Wes O’Donnell. Defense journalist, Army and Air Force veteran. I spent four years on AWACS, which is a flying radar whose existence is partly a workaround for the exact problem this system is designed to solve from the ground. I’ll explain what I mean by that, and why the ionosphere is a better solution than sending a hundred-ton airplane into the sky every day. Stay with me.

I hope you’ve had your brecky and gone to the dunny because Australia and Canada signed their largest bilateral defense agreement in history this morning.

A$2.5 billion, roughly US$1.75 billion, for Australian-designed over-the-horizon radar technology. Canada’s Secretary of State for Defense Procurement signed with Australia’s Deputy Prime Minister and Defense Minister Richard Marles in Canberra. BAE Systems Australia is the industry partner, and delivery work commences in nine days, on July 1.

This is Australia’s largest-ever defense export by a significant margin. It’s also the first time Australia has sold its over-the-horizon radar technology to any country, which tells you how seriously both governments take the arrangement and how long they’ve been careful about it.

Trump’s going to learn that those Canadians can be a frosty bunch. With ice water in their veins. I wouldn’t want to piss them off.

The radar will be called Canada’s Arctic Over-the-Horizon Radar, or A-OTHR. Initial operational capability is targeted for December 2029. But here’s the detail the headline doesn’t carry: this is only Phase 1. A second radar, the Polar Over-the-Horizon Radar, will follow, sited deep in the Canadian Arctic Archipelago at a location that is classified. The full program is valued at C$6 billion and won’t be complete until 2043. What Canada signed today is the opening move in a decades-long Arctic surveillance project.

Canada did not buy a radar so it could stare at a slightly larger patch of snow. It bought a radar because the Arctic is becoming a front door, and front doors need alarms.

The geography problem is simple to state and expensive to solve.

Canada’s Arctic is vast. It is sparsely populated, almost entirely lacking in infrastructure, and faces Russia across the polar region. It sits on the northern approaches to North America, which means any aircraft, missile, submarine, or ship using that route is approaching the continent from above. And monitoring that approach with conventional radar is a genuine technical problem, not just a funding problem.

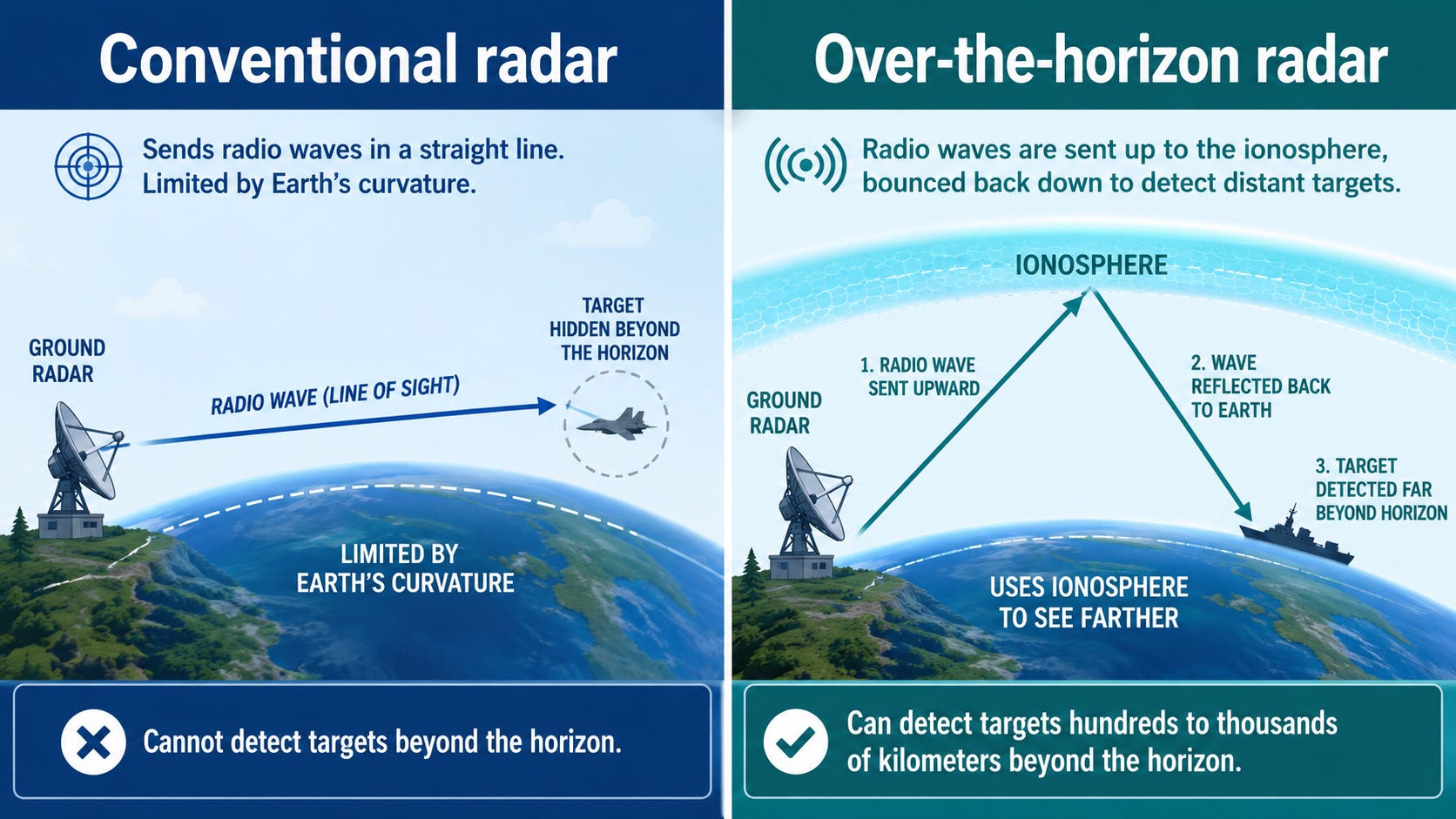

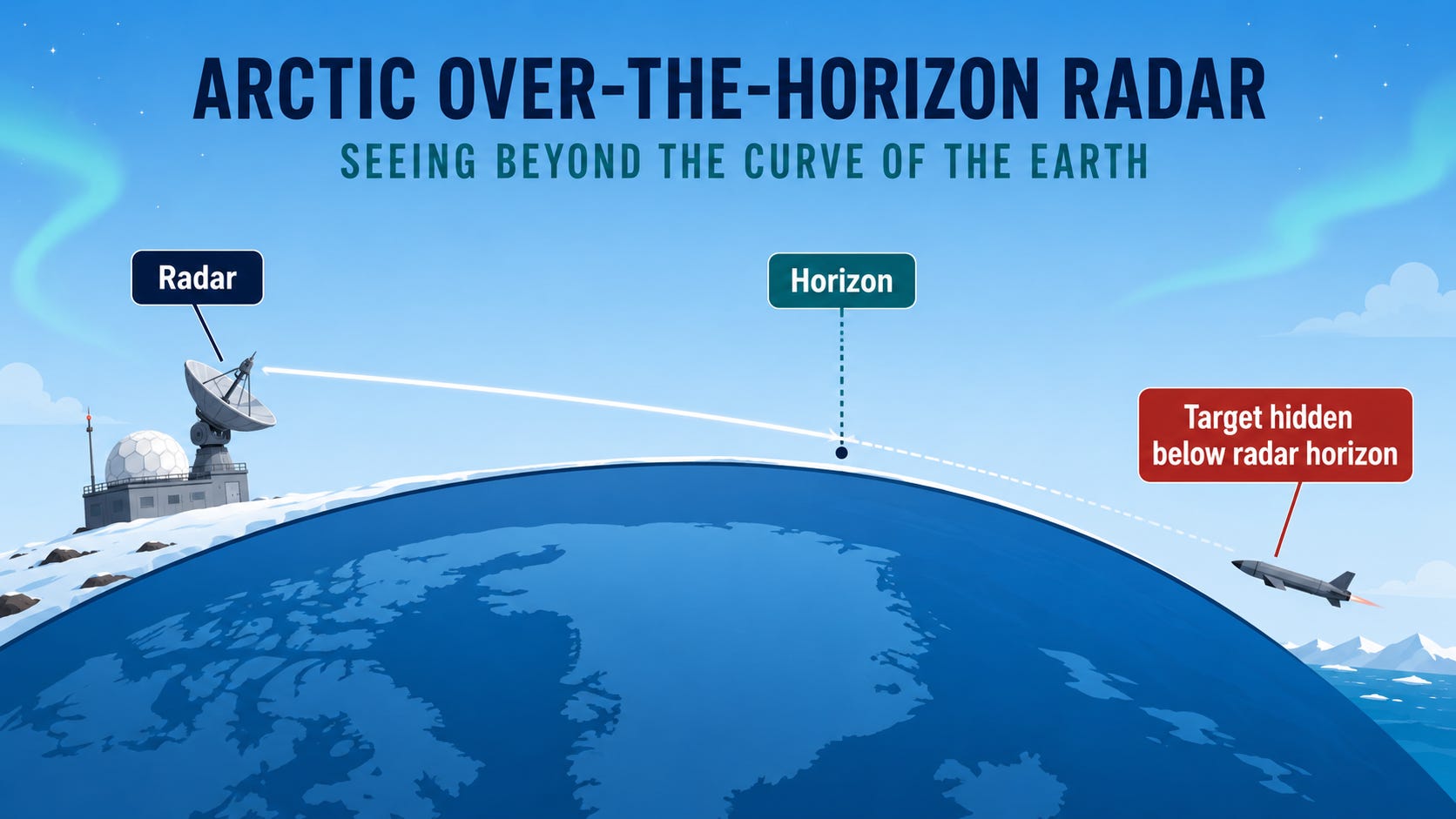

Conventional radar sends energy outward in straight lines. But the Earth curves. A radar beam traveling across the surface eventually runs past the horizon, and anything flying low enough, a cruise missile hugging the terrain, an aircraft at low altitude, a ship on Arctic waters, can hide below that line until it’s much closer than anyone wants. Line-of-sight radar has a ceiling imposed by physics, and that ceiling creates the gap that over-the-horizon radar is specifically built to close.

Canada says A-OTHR is part of its C$38.6 billion NORAD modernization program announced in 2022, and that it will work closely with the United States to ensure full interoperability. So let me address the political framing before it addresses itself.

Yes, Carney chose Australian technology over comparable U.S. technology. That is politically interesting and will generate headlines. But the better framing is this: Canada chose the technology that best matched the problem. Australia has been operating over-the-horizon radar in its own continent-sized surveillance gap for four decades. That’s not a vendor relationship. That’s institutional expertise Canada is buying along with the hardware.

This is less Canada breaking up with America and more Canada admitting that Australia had the weird radar Canada needed for a very weird geography problem. And because A-OTHR feeds into NORAD, the U.S. benefits from a better Canadian Arctic picture. The alliance math isn’t zero-sum.

Over-the-horizon radar is one part engineering and one part arguing with the upper atmosphere.

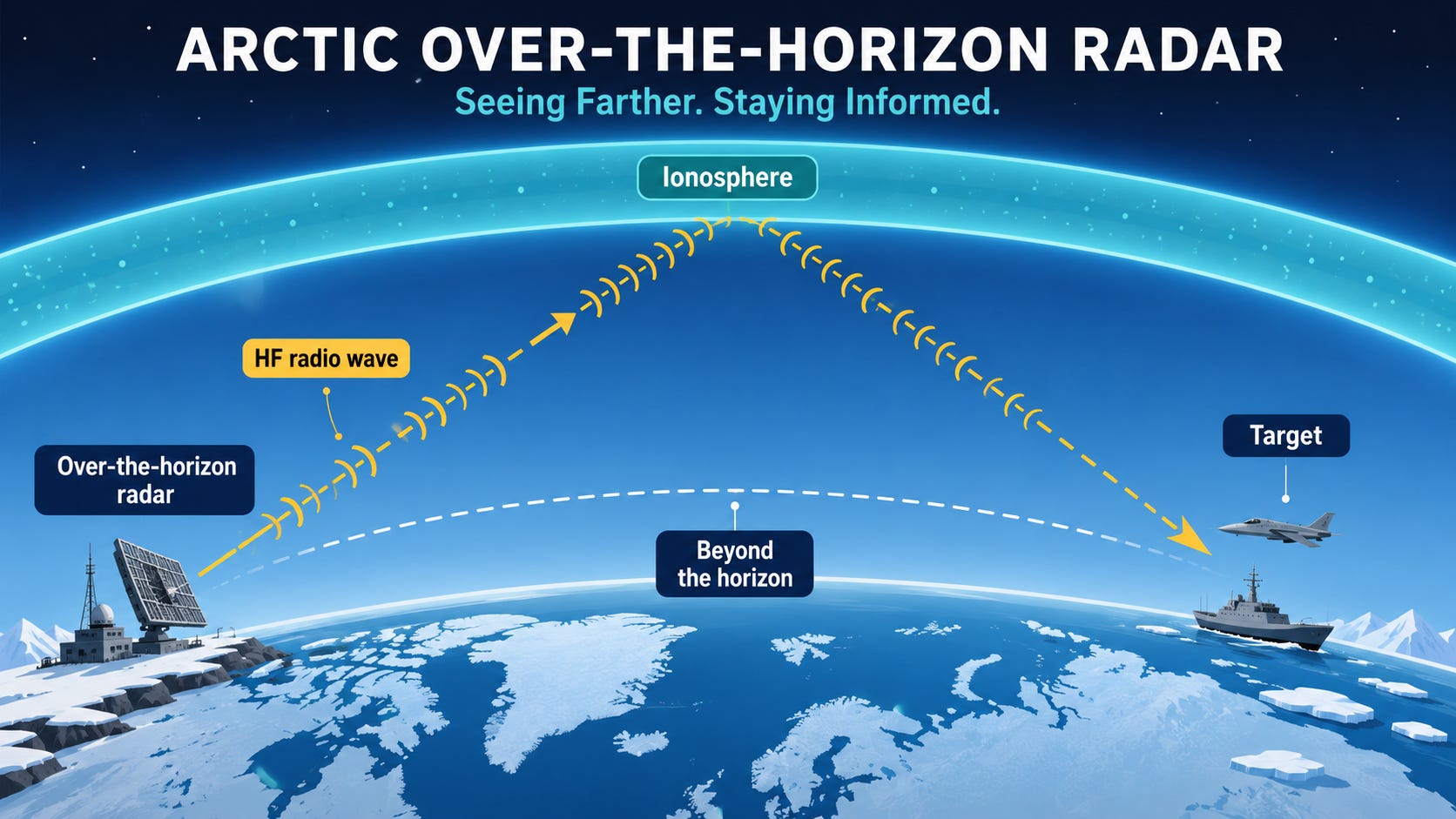

Here’s the principle. Normal radar sends a pulse out, waits for a reflection, and calculates where the target is from how long the echo took to return. That works well when the target is within line of sight. Over-the-horizon radar uses high-frequency radio waves, typically between about 5 and 30 megahertz, that travel upward at an angle and refract off the ionosphere, the electrically charged layer of the upper atmosphere sitting between roughly 60 and 1,000 kilometers above the Earth’s surface. The waves bend back down toward the surface far beyond the normal radar horizon, sometimes thousands of kilometers away. If they encounter an aircraft, a ship, or a missile, a fraction of that energy scatters back along a similar path. The radar collects that faint return and uses substantial signal processing to work out where the object is and how it’s moving.

The analogy that makes it click: imagine you’re standing behind a hill and you can’t see over it. But if there were a giant curved mirror above you, you could bounce light off that mirror and illuminate what’s on the other side. That’s the cartoon version. The real version uses massive antenna arrays that stretch for kilometers, containing hundreds of elements that steer the beam electronically without moving any hardware. JORN does not punch through the horizon. It throws a radio wave upstairs, lets the ionosphere redirect it, and then listens for the whisper that comes back.

A single A-OTHR installation watching the Arctic approaches to North America is expected to cover an area comparable to the entirety of Western Europe. From stations in the Kawartha Lakes region of southern Ontario.

JORN isn’t new. It represents four decades of Australian investment in a technology the rest of the world treated as too complicated and too unreliable to pursue at scale.

The network consists of three radar sites: Longreach in Queensland, Laverton in Western Australia, and Alice Springs in the Northern Territory, coordinated through a central facility at RAAF Base Edinburgh in South Australia. Each site uses antenna arrays that stretch for kilometers, electronically steered, covering Australia’s northern and western approaches out to 3,000 kilometers. The system tracks aircraft, ships, and missiles. It also supports border protection, maritime surveillance, disaster relief, and search and rescue, and can detect wave heights and wind patterns, which is genuinely useful and also a pleasant bonus from a radar that was built to watch for threats.

BAE Systems Australia has been involved in JORN’s development, maintenance, and upgrades for decades, winning the Phase 5 enhancement contract and currently leading the Phase 6 midlife upgrade alongside 110 Australian companies. Australia’s Chief Defense Scientist described the technology as grounded in decades of research by Australia’s Defense Science and Technology Group and innovation by Australian industry. What Canada is buying isn’t just a hardware design. It’s the people who know how to make it work, how to operate it when the ionosphere is behaving strangely, and how to maintain it when something fails in a remote location with no road to drive a service truck on.

Australia looked at an empty horizon and built a radar to watch beyond it. Canada looked at the Arctic and said, yes, we have that problem too, only colder.

The A-OTHR system will be substantially larger than any JORN radar site. Bigger systems are more complex systems. Canada’s Defense Science and Technology Group and BAE Systems Australia are working together to adapt the technology to Arctic conditions, and those conditions are meaningfully different from Queensland. Auroral activity. Ionospheric disturbances driven by polar space weather. Extreme cold that affects infrastructure, electronics, and the workers who maintain both. Sparse roads and power supply.

The ionosphere is also not a reliable mirror. Its reflective properties change with time of day, season, solar activity, and space weather. Over-the-horizon radar operators spend real effort understanding when the sky is cooperating and when it isn’t. The Australian expertise addresses that challenge, but the Arctic ionosphere and the Australian ionosphere are different animals.

And the full program picture deserves emphasis. A$2.5 billion by December 2029 is Phase 1. The Polar OTHR in the Arctic Archipelago follows. The full system, complete by 2043, is valued at C$6 billion. That’s two decades of sustained investment, three governments at minimum, and an assumption of political continuity that history has occasionally disrupted in exactly that timeframe.

This is not a skepticism about the technology. JORN works and has worked for four decades. It’s a reminder that adapting proven technology to a harsher environment, at a larger scale, on a 17-year program, carries genuine delivery risk that doesn’t appear in the press release.

Here’s what the deal actually means, beyond the technical specifications.

Distance used to protect countries like Canada and Australia. Remoteness was itself a form of defense. The Arctic was frozen buffer. Australia’s north was ocean nobody wanted to cross. Both countries built their strategic assumptions around geography doing a significant portion of the deterrence work for free.

That geography hasn’t changed. But the threat environment around it has. Russia has major Arctic military infrastructure and has spent a decade modernizing its northern capabilities. China calls itself a near-Arctic state, which involves a level of geographic optimism usually reserved for people who’ve never seen a map. Cruise missiles, submarines, long-range bombers, and surveillance drones have made distance less protective than it used to be.

Canada and Australia are both rebuilding the warning layers that geography once substituted for. This radar deal is the most concrete expression of that rebuilding that either country has yet produced. Not a policy statement. Not a white paper. A$2.5 billion with a delivery date and a contractor standing by.

Five Eyes is not just everyone standing around waiting for Washington to bring the expensive toy. Sometimes Australia shows up with the strange radar and Canada says, excellent, we’ll take one for the Arctic.

That’s the story underneath the headline. Two middle powers with a shared strategic problem, forty years of Australian ionospheric expertise, and a contract that starts in nine days.

Somewhere in the upper atmosphere, between sixty and a thousand kilometers above the Canadian Arctic, a radio wave is about to do the most Commonwealth thing imaginable: travel a ridiculous distance, report back politely, and make Russia’s day substantially more complicated.
